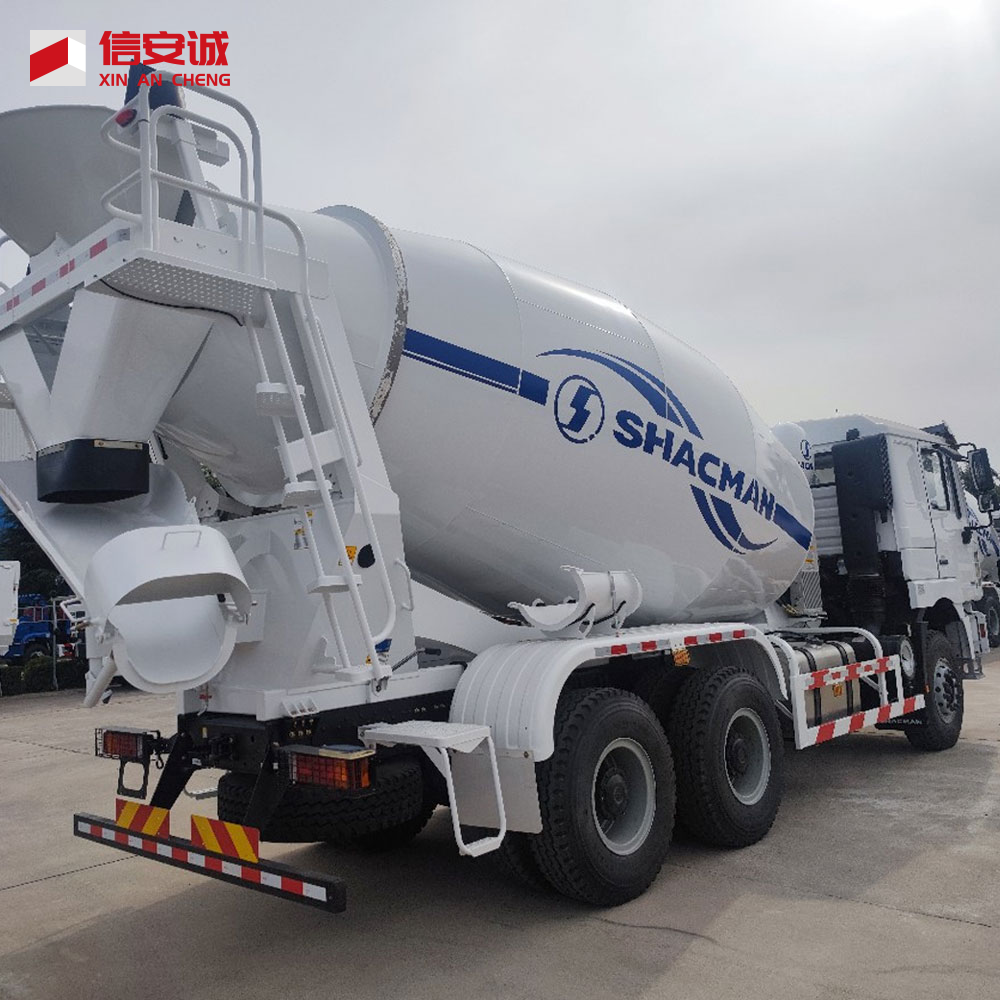

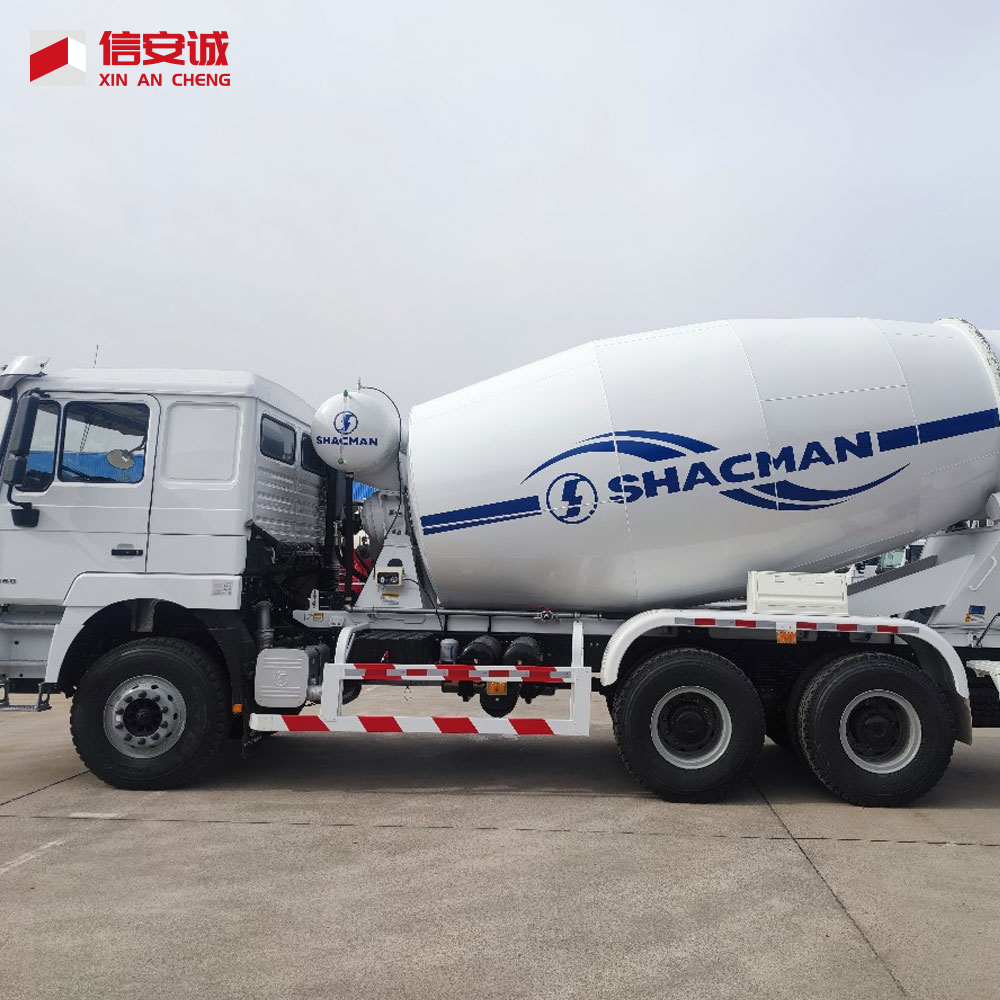

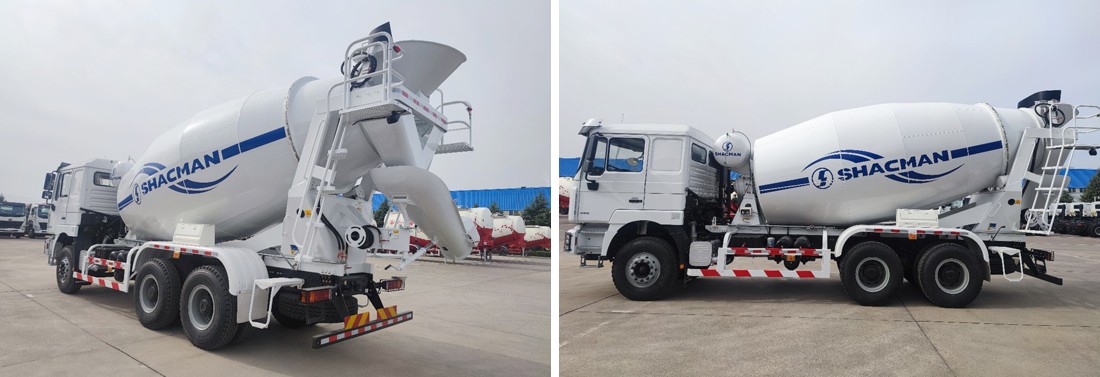

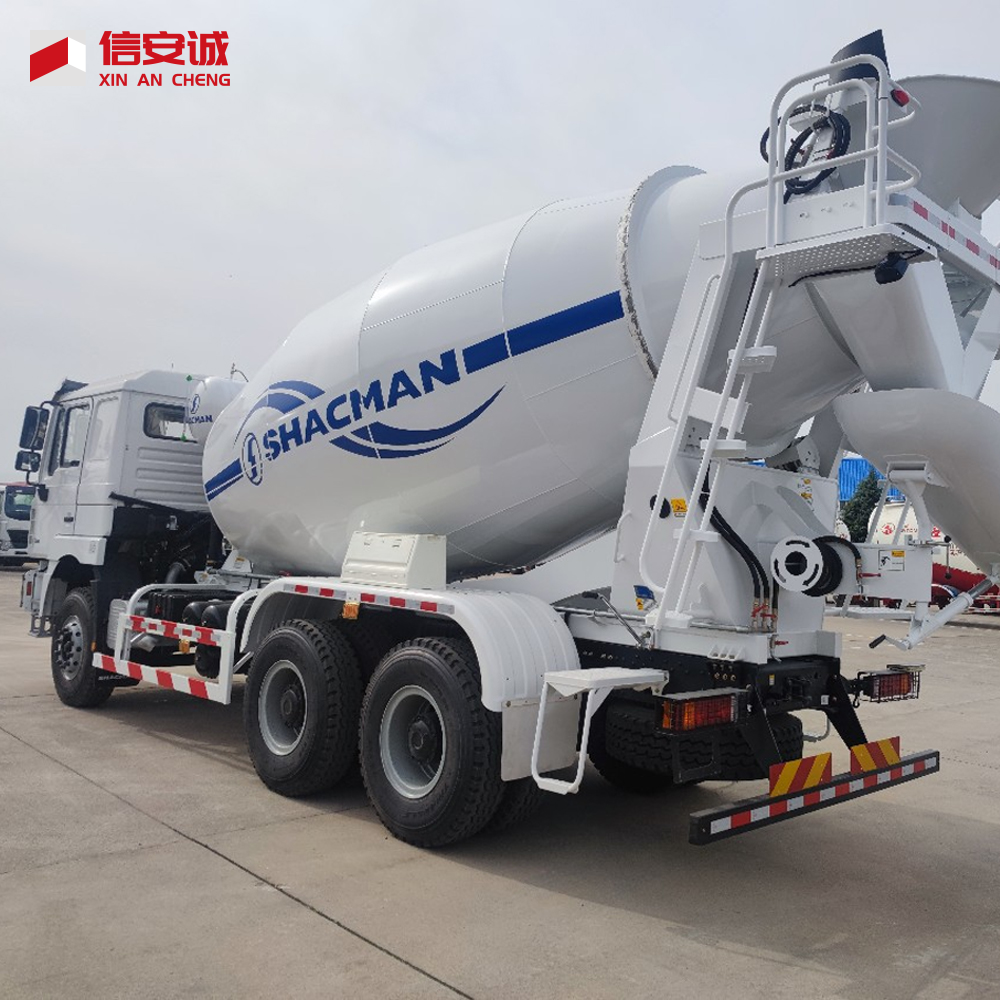

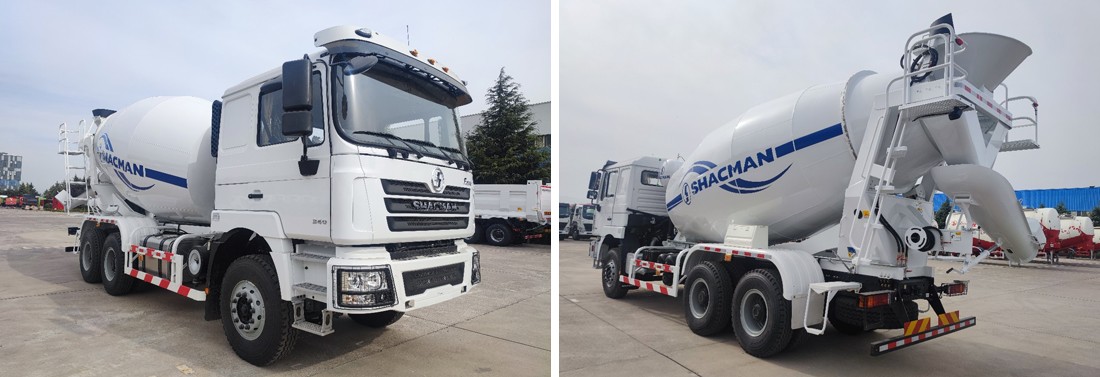

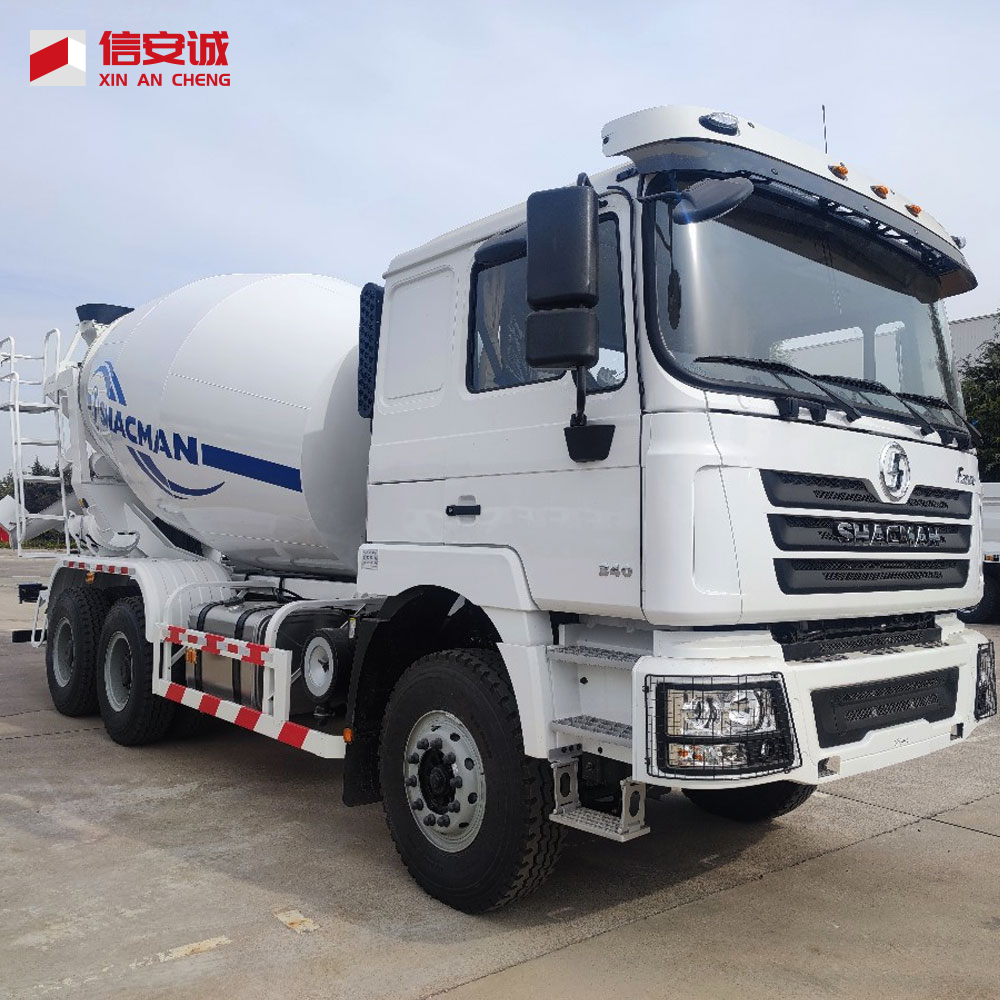

Shacman F3000 6x4 Cement Mixer Truck

Name: Shacman F3000 6x4 Cement Mixer Truck
SKU: 0

Model Number: Shacman Cement Mixer Truck
Brand: Shacman
Capacity (Load)：31 - 40T
Tank capacity(L)：400L
Drive Type: 6X4
After-sales Service: 24 Months
Place of Origin: China
Payment Terms: T/T, LC, Western Union
Delivery Time: 15-25 working days after received your payment
Shipping: Ro-Ro/Bulk cargo/Container
shipment / SKD / CKD / etc

Message

Shacman F3000 6x4 Cement Mixer Truck

This SHACMAN F3000 is the pinnacle of efficiency and reliability in the construction world! With its solid construction and powerful performance, it can handle concrete mixing and transport with ease.

Concrete mixing truck adopts high_strength rear double bridge of Shaanxi Qi Delong chassis, strong bearing capacity, no disassembly and maintenance, the use of Weichai engine, power enough, speed up, economy and fuel saving, Faust gearbox, large torque, fast climbing, is a super powerful mixing truck.

F3000 concrete mixing truck adopts highstrength rear double bridge of Shaanxi Qi Delong chassis, strong bearing capacity, no disassembly and maintenance, the use of Weichai engine, power enough, speed up, economy and fuel saving, Faust gearbox, large torque, fast climbing, is a super powerful mixing truck.

It can provide various qualified concrete for roads, bridges, tunnels, houses, water tunnels and other projects.Widely used in various construction projects

◉ Product Parameters

Advantage:

1, super loadbearing, durable: the use of advanced international technology integrated rear support, the overall fatigue life increased by 1 times, reinforced cable-stayed beam to ensure sufficient strength and stiffness of the vehicle rear suspension;

2, large feed caliber: the feed hopper caliber exceeds the average level of the same industry 3.5%, the feed efficiency is higher than the same industry level of more than 5%, suitable for different mixing stations and construction site needs;

3, efficient discharge device: the use of fluid mechanics and bionics principle, the chute lining with high-performance wear resistant materials to ensure the discharge progress, the speed is higher than 20% of the same industry;

4, advanced blade design: blade continuous helix design, stirring evenly, fast discharge, low residual rate, key parts of the design of pressure relief hole layout, so that the life of the tank and blade;

5, humanized cleaning device: integrated water tank pressure type water supply, gas pressure is convenient to achieve water and mixing tank, blade, inlet and outlet place cleaning, quick and convenient switching, but also real-time observation of pressure and water level;

SPECIFICATIONS OF SHACMAN F3000 6×4 MIXER TRUCK

SHACMAN F3000 6×4 MIXER TRUCK
Product name	Shacman F3000 Concrete Mixer Truck
Dimension(L x W x H)(mm)	9500×2500×3950mm
Total mass(kg)	25000kg
Front/rear suspension(mm)	1525/2445
Engine	WP10.380E22,380HP, Euro 2,
Cabin	F3000,one sleeper,with air conditioner
Rated speed(rpm)	2200rpm
Emission Standard	E-II
Displacement(L)	9.726L
Driving type	6×4
Wheel base(mm)	3775+1400mm
Clutch	φ430diaphragm spring
Front axle	9.5T MAN 9500kg
Type	12R22.5,10+1pc
Brake system	ABS(Four channel)
Tank capacity(L)	400L
Max. speed (km/h)	85km/h
Color	optional
Material of tanker	Q345
Thickness	Thickness of canister wall:5mm,end socket:6mm

Our dump trucks can be replaced with new tires, new seats, new center consoles, new gearboxes, new clutches, new engines, etc.

◉ PACKAGING AND TRANSPORTATION

Packing and shipping

Usually Our Truck can be shipped by Ro-ro ship or Bulk ship or Container or Flat rack.
Choose the most safety and economy solutions shipping customers trailers.So customers can get them happily. We will choose the The most economical, fastest and safest way for customers.

Packing Detail:

RoRo or Bulk base on the ship and port in your country. If the truck on the deck,we will spray antirust paint with free. Usually we will put the truck in cabin ofthe ship.
