Howo 371 8X4 Concrete Cement Mixer Truck

Name: Howo 371 8X4 Concrete Cement Mixer Truck
SKU: 0

Model Number: Howo Concrete Mixer Truck
Brand: Sinotruk HOWO
Horse power： 371
Drive Type: 8X4
After-sales Service: 24 Months
Place of Origin: China
Payment Terms: T/T, LC, Western Union
Delivery Time: 15-25 working days after received your payment
Shipping: Ro-Ro/Bulk cargo/Container
shipment / SKD / CKD / etc

Message

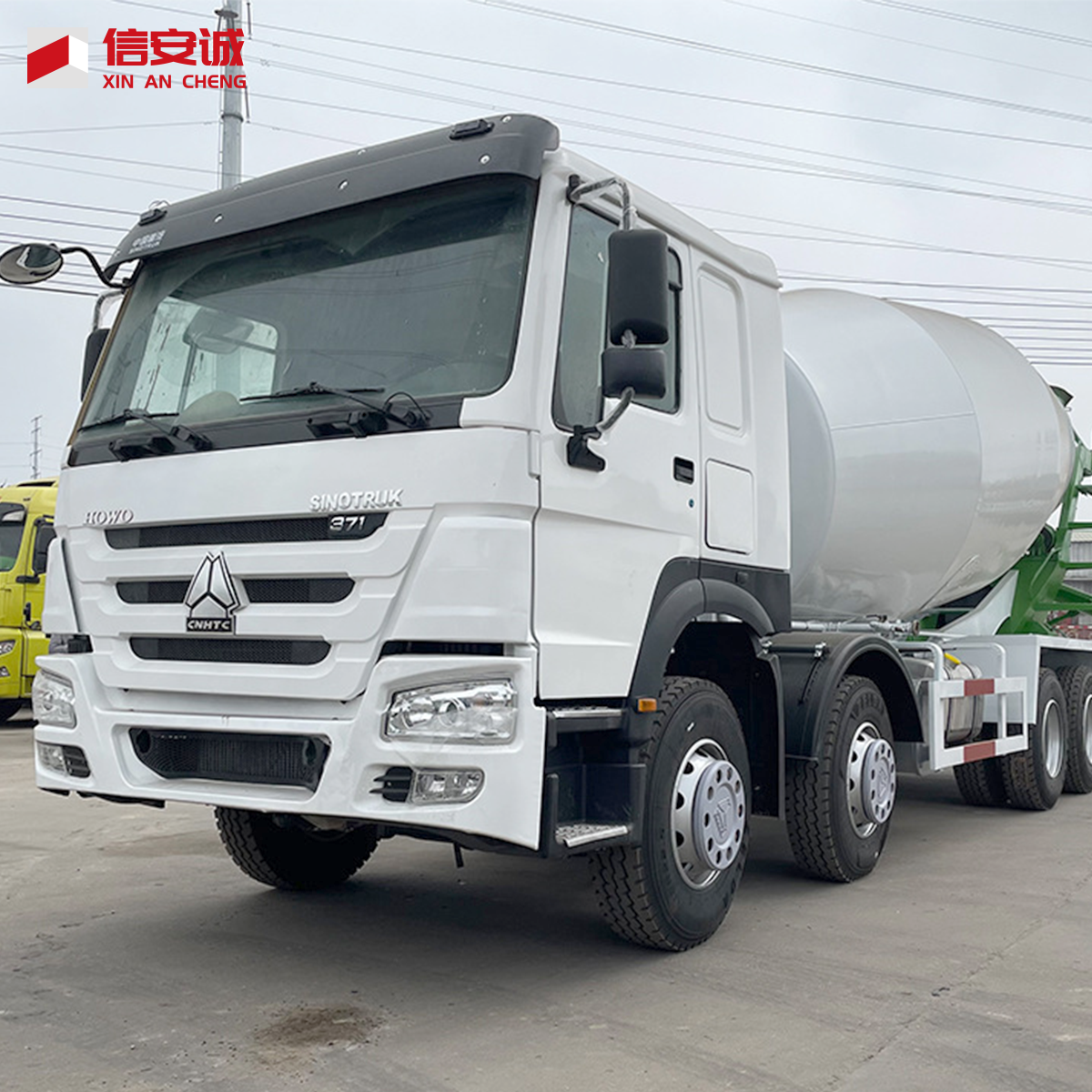

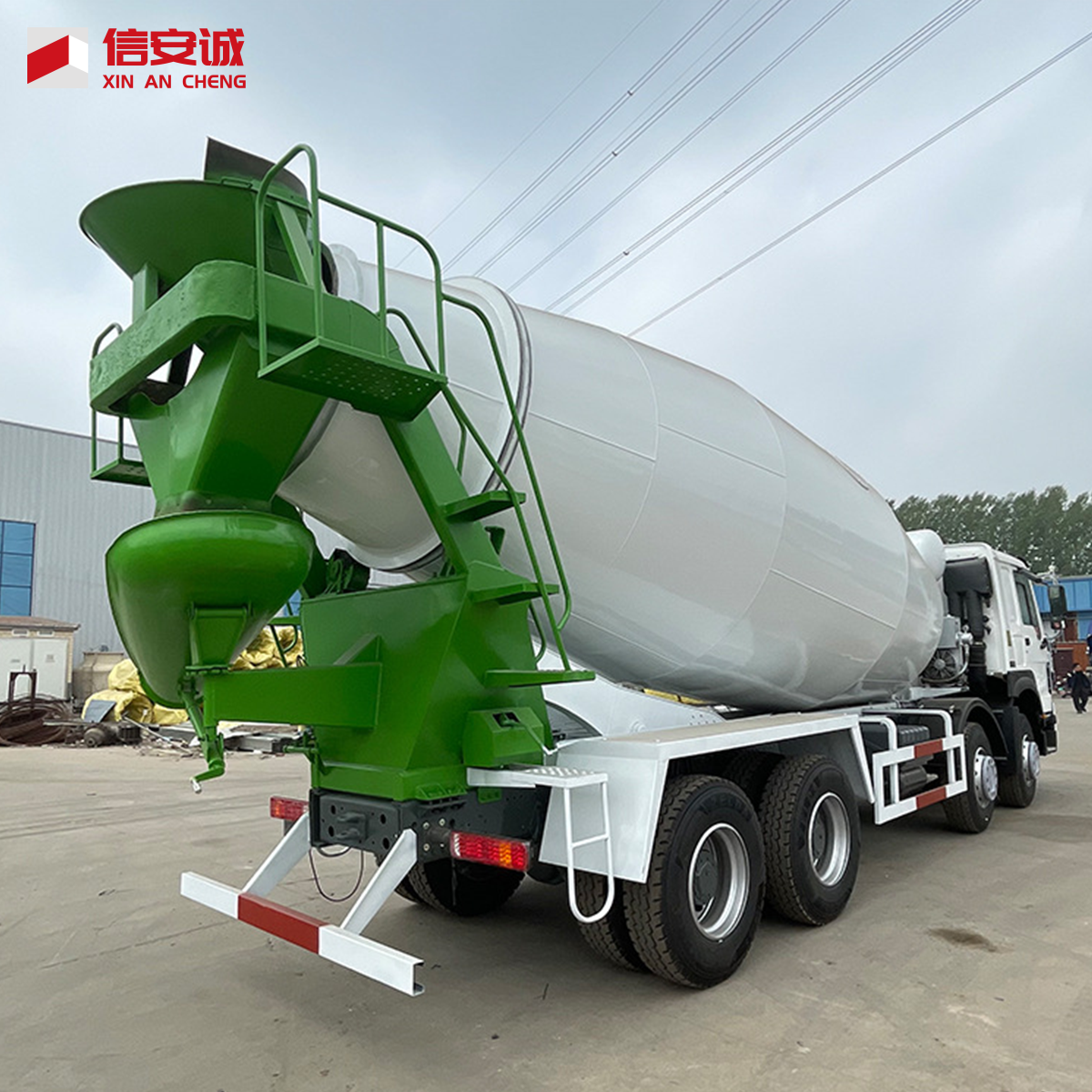

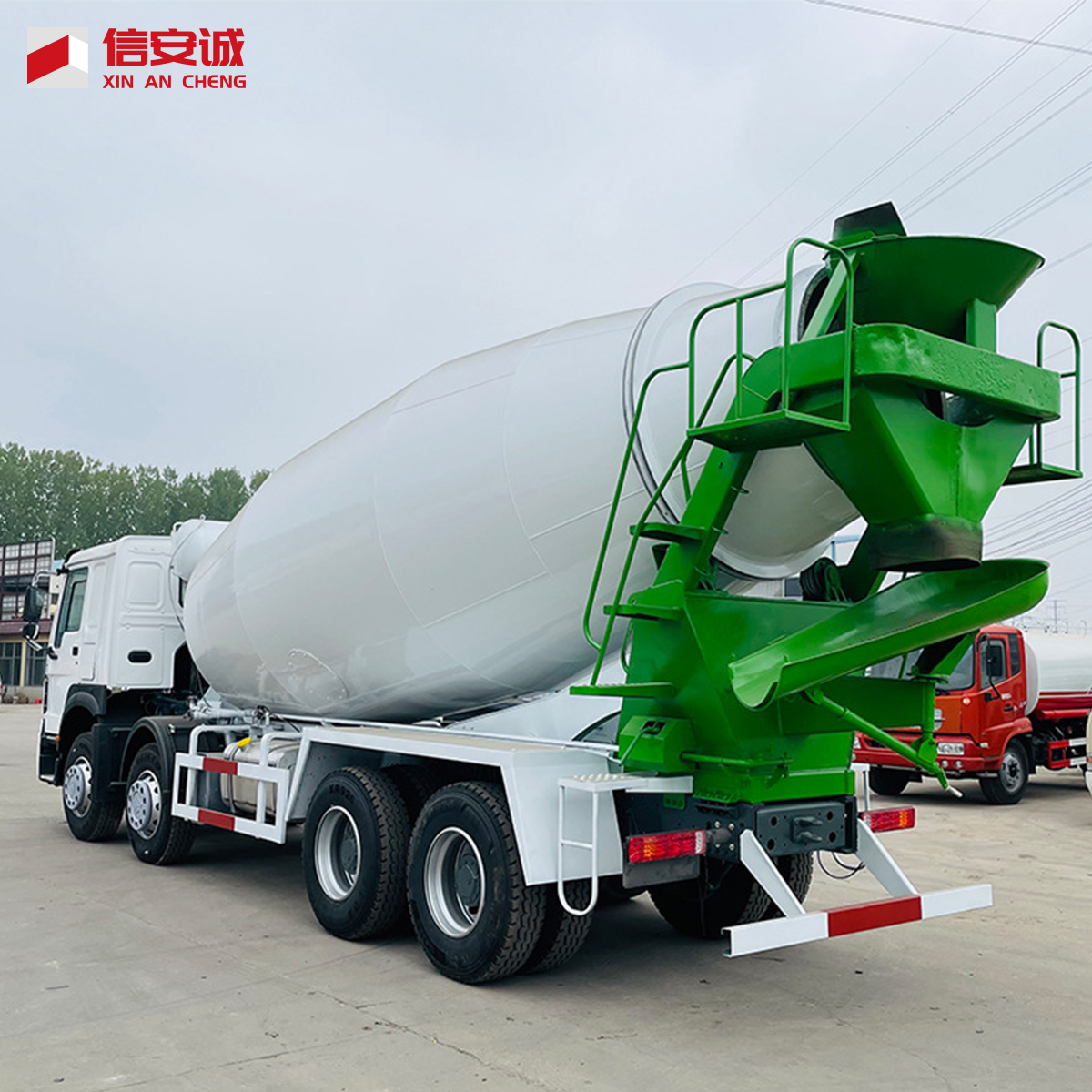

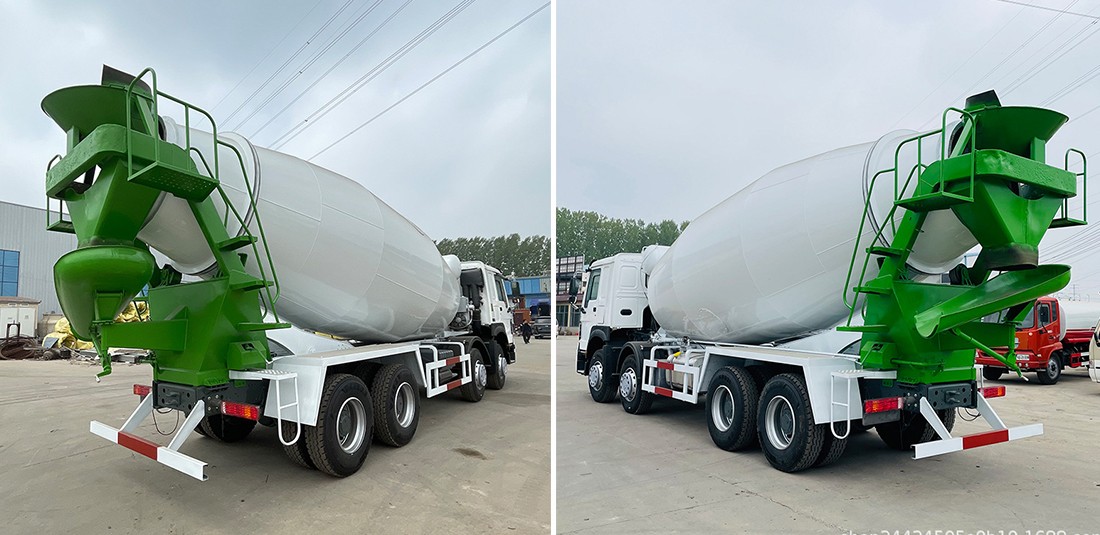

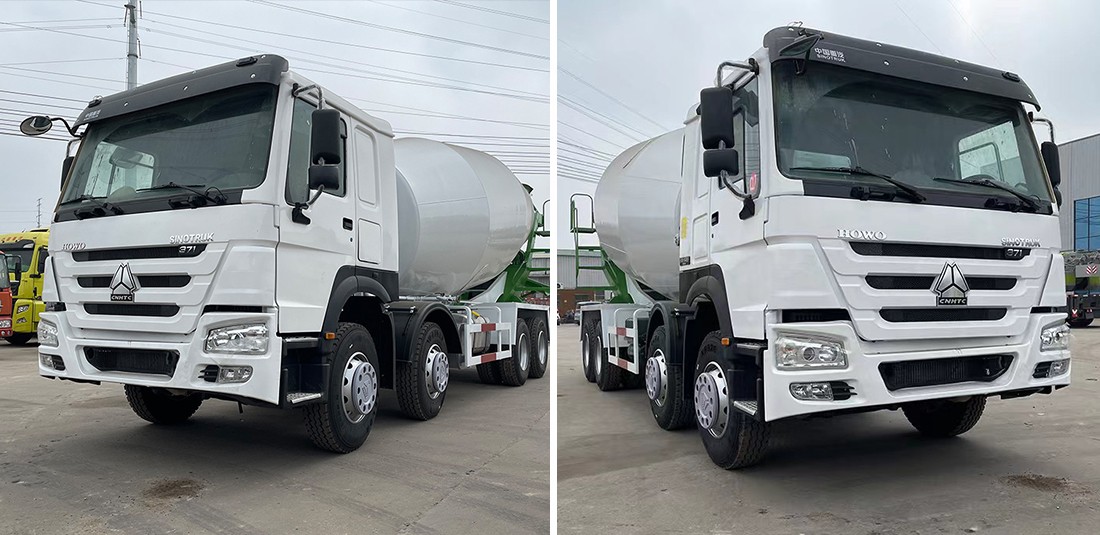

Howo 371 8X4 Concrete Cement Mixer Truck

Howo 371 Concrete Truckfor Sale is a special truck used to transport concrete for construction; because of its shape, it is often called a snail truck. This type of truck is equipped with a cylindrical mixing drum to carry the mixed concrete.

Howo 371 Concrete Truck is constructed with hightensile steel for endurance and resistance to friction. They can handle a wide range of concrete slumps.

The chassis can use Howo , Shacman , The drum capacity can be 6/8/9/10/12/14/15 m3,Varied specifications meet difference demands and requirements

We offer high quality products and competitive price,customer's design is available. You are guaranteed with fast deliveries and quick answer.Your satisfaction is our responsibility.

◉ Product Parameters

Advantage:

1. Wear-resistant strips are installed on the top of the blade to extend the service life.
2. Different sections of the barrel are designed with different helix angles to eliminate the dead angle between the blade and the barrel arm, which has the advantages of fast feeding and discharging speed, good concrete homogeneity, low residual rate and no material accumulation.
3. The subframe adopts rectangular tubes with excellent torsion resistance and bending resistance, and adds flexible diagonal braces to greatly increase the service life of the frame.
4. Adopt international firstclass brand, high reliability. The hydraulic transmission parts used are the best brands in the industry, Sao, Italy, and PMP7.5 from Italy, with high reliability.

SPECIFICATIONS OF Sinotruk Howo 371 6*4 Concrete Mixer Truck

Brand	Sinotruk Howo
	Driving type 6X4, 8X4, LHD HW76 single bed
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm	10245x2496x3450
	Wheel base (mm)	3600+1350
	Wheel track (front/rear) (mm)	2022/2022
	Approach/Departure angle(°)	16/24
Max. driving speed(km/h)		90
Engine	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Model	WD615.47
	Horse Power(HP)	371
	Emission standard	Euro II
Gearbox	10 forwards & 2 reverse
Steering	Left hand drive
Tire	12R22.5 tubeless tires with one spare
Mixer Drum	Mixer Capacity	16 cubic meters
	Drum thickness	6mm
	Blade thickness	4mm
	Tanker Material:	16MnQ345 Carbon Steel
	Filling Rate(%)	59
	Input Speed (m3/min)	≥2.8
	Output Speed (m3/min)	≥1.2
	Surplus Ratio	≤0.5
	Tanker Rotate Speed(rpm)	0~17
	Hydraulic Pump	Italy Brand: PMP
Drum Drive System	Hydraulic Motor	Italy Brand: PMP
	Speed Reducer	Germany Brand
	Radiator	KAITONG
	Water Tank Volume(L)	400

Our dump trucks can be replaced with new tires, new seats, new center consoles, new gearboxes, new clutches, new engines, etc.

◉ PACKAGING AND TRANSPORTATION

Packing and shipping

Usually Our Truck can be shipped by Ro-ro ship or Bulk ship or Container or Flat rack.
Choose the most safety and economy solutions shipping customers trailers.So customers can get them happily. We will choose the The most economical, fastest and safest way for customers.

Packing Detail:

RoRo or Bulk base on the ship and port in your country. If the truck on the deck,we will spray antirust paint with free. Usually we will put the truck in cabin ofthe ship.
