70ton 4 Axle Flatbed Trailer

Name: 70ton 4 Axle Flatbed Trailer
SKU: 0

Dimension(mm): 13000x2500x1550mm
Loading capacity(ton): ≤70T
Axles: 4 axles, haiming Brand
Tire: 16 units, 12.00R22.5
Suspension: Mechanical suspension
Landing Gear: JOST brand
Platform: 3mm-thick checkered plate
Twist Locks: 4,8,12 sets (lifting or screw type)

Message

Flat bed semi trailer

Features: Flatbed plate semi -trailer is a kind of semi-trailer without wall and canopy, with simple structure and stong adaptability,

Application scenario: It is mainly used to transport various goods with unlimited length,width and height. such as construction materials, steel products and heavy machinery

Technological development: In recent years , with the application of light weight and strength materials , the loading capacity of plate semi trailer has been greatly improved

◉ Product Parameters

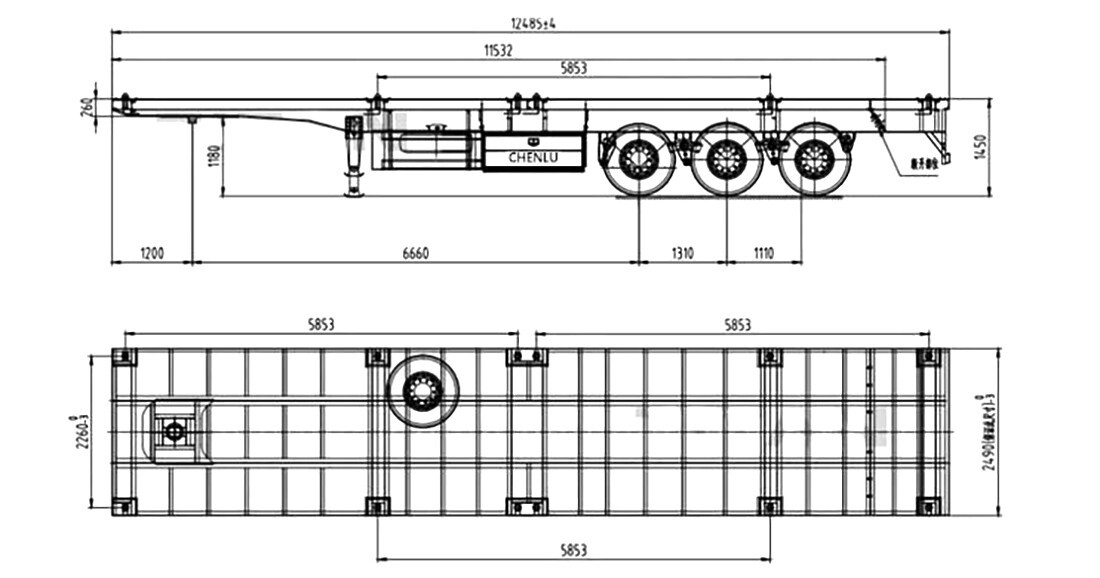

Detail Specification for flatbed semi trailer
Items	Flat bed semi tailer
Tare Weight	7.0 Tons
Payload	50Tons
Size	12400x2610x1550mm
Frame	Main Beam: Opting for high strength Q345B steel, 520mm deep welded I-section main beams, Top flange thickness 14mm, Bottom flange thickness 16mm, Middle flage thickness 8mm
	Cross Beam: Heavy duty thickened 10# channel steel
	Side Beam: Heavy duty 18# channel steel
	Floor: 3mm thickness checkered plate
Axles	13/16/20 tons, axle amount optional like 2/3/4/5/6 axle ... axle brand optional like SAF/FHWA/BPW etc
King pin	2.00"(50#), bolting king pin, JOST brand
Suspension	Heavy duty type tri-axles suspension with equalizers. American design
Steel Spring	Six sets of reliable famous brand , 10pcs leaf spring, thickness 13mm. width 90mm
Landing gear	28tons lifting capacity , two speed
Tire specs	12R22.5 Triangle brand , or another brand according to customer
Rim	9.00-22.5 brand according to customer
Paiting	Sanding , anti-corrosion , one primer paining add two layer top coat painting
Side Gurd	According to customer
Electrical system	One unit of 24v 7-pin ISO 1185 socket: LED light
spare tire	Two set of heavy duty spare wheel carriers, indluding a riser
Tool Box	One Piece (1.0 x 5.0 m) with 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar

PRODUCT DETAILS

Chassis Frame

It is mainly used to enhance the loadbearing capacity and overall rigidity of the vehicle body, ensure the stability and durability of the vehicle when transporting heavy-loaded items.

Suspention - Anti-Tire Abrasion

Specially designed antiTire abrasion suspension system prevent tire deflection after loading and avoids tires to the maximum extent worn out. and easy to disassemble and maintain.

Landing Gear

The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for service from -30°C to 120°C.

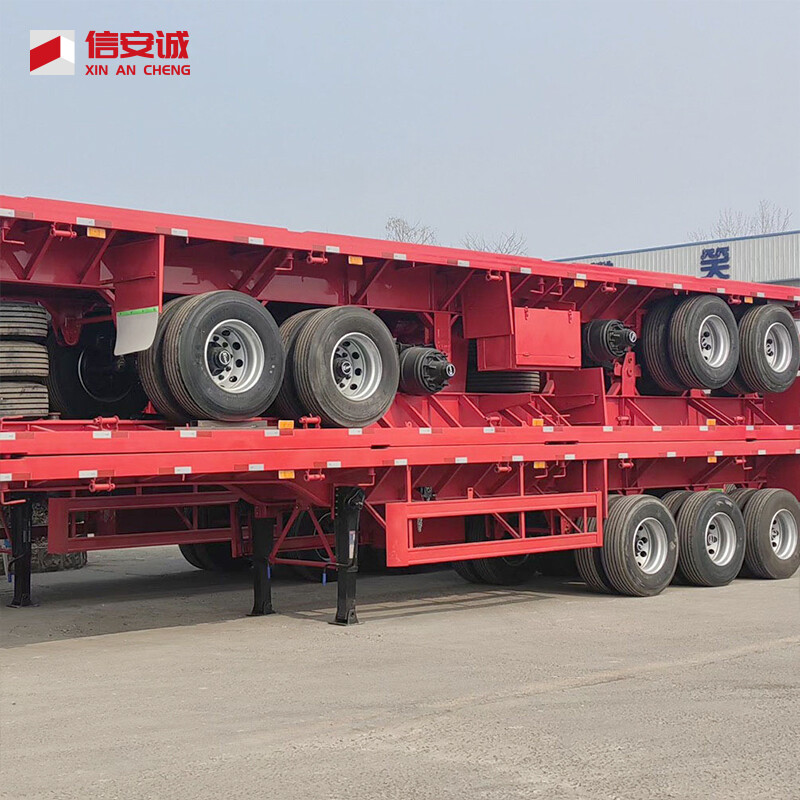

Axle suspension and brake system

BPW Fuwa worldwide best axles worki with WABCO brake valve, More effectively brake for safe and save tire cost , Fix quality springs and suspension , support longer service life, save maintain cost .
